تصفّح معدات وأنظمة الحماية من الحريق التي نوردها في جميع أنحاء الإمارات. لطلب عرض سعر لأي منتج، اضغط زر الطلب على البطاقة.
الأسعار عند الطلب

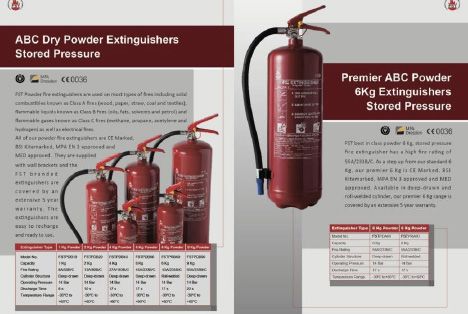

Stored-pressure ABC dry powder fire extinguishers, including a 6 kg Premier ABC powder model, suitable for Class A, B and C fires.
| Type | ABC Dry Powder, Stored Pressure |
|---|---|
| Premier ABC Powder variant | 6 Kg Stored Pressure |
| Charge | ABC dry chemical powder |
| Operation | Stored pressure |

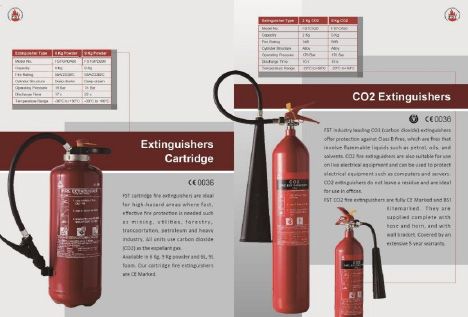

A line of fire extinguishers covering cartridge-operated, CO2, water/foam and wet chemical types to address different fire classes.
| Cartridge Extinguishers | Cartridge-operated type |
|---|---|
| CO2 Extinguishers | Carbon dioxide type |
| Water Foam Extinguishers | Water/foam type |
| Wet Chemical Extinguishers | Wet chemical type for Class F fires |

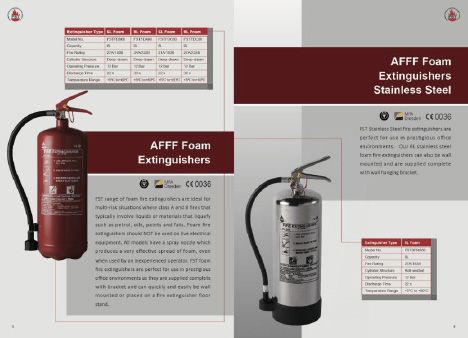

AFFF foam fire extinguishers available in standard and stainless-steel body versions for protection against Class A and B fires.
| Type | AFFF Foam |
|---|---|
| Body options | Mild steel and Stainless Steel |
| Charge | AFFF foam concentrate |
| Application | Class A and Class B fires |
A range of firefighting foam concentrates from Alpheus Industry Technology, including aqueous film-forming, alcohol-resistant, protein/fluoroprotein and high-expansion foams for diverse fire-suppression applications.
| AFFF | Aqueous Film Forming Foams |
|---|---|
| AFFF-AR | Alcohol Resistant Foams |
| P, FP, FFFP | Protein and Fluoroprotein Foams |
| HE | High Expansion Foams |
الطراز: AFFF 1%/3%/6%, AR-AFFF 3%x3%/3%x6%, FFFP 3%, FP/FFFP 3%, FP 3%/6%, HE 1%/2%

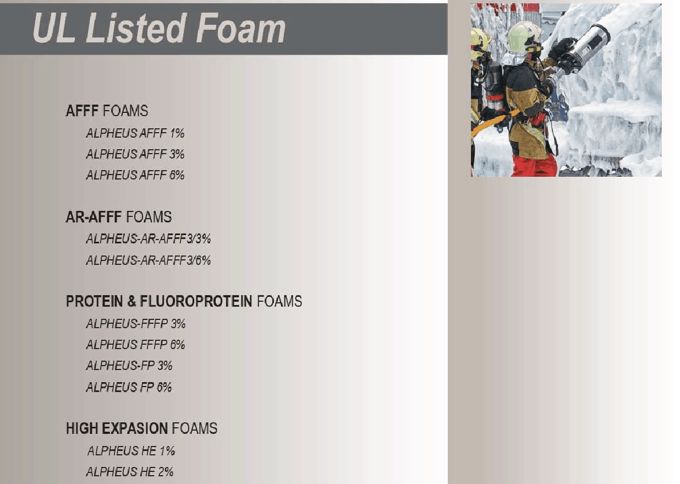

A complete range of UL Listed firefighting foam concentrates including AFFF, alcohol-resistant AR-AFFF, protein/fluoroprotein and high-expansion foams in 1%, 3% and 6% proportioning rates. Suitable for hydrocarbon and polar-solvent fire protection applications.
| AFFF foams | ALPHEUS AFFF 1%, AFFF 3%, AFFF 6% |
|---|---|
| AR-AFFF foams | ALPHEUS AR-AFFF 3%x3%, AR-AFFF 3%x6% |
| Protein & fluoroprotein foams | ALPHEUS FFFP 3%, FP/FFFP 3%, FP 3%, FP 6% |
| High expansion foams | ALPHEUS HE 1%, HE 2% |
| Approval | UL Listed |
الطراز: FSTHC-05, FSTHC-06, FSTHC-07, FSTHC-03

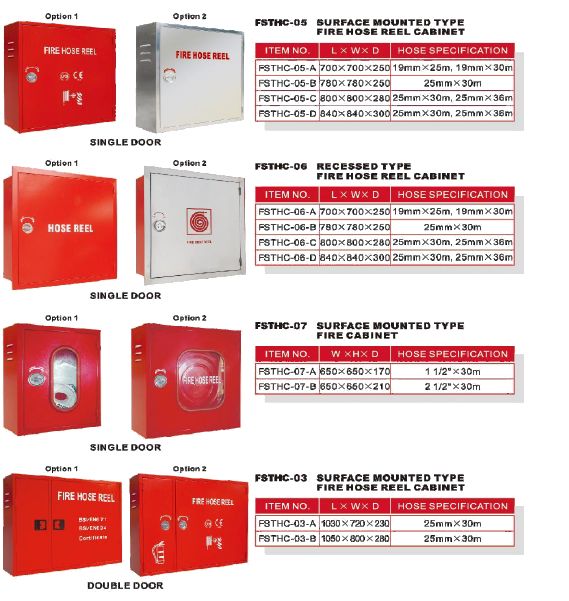

Steel fire hose reel cabinets in surface-mounted and recessed-mounted styles, available in single and double-door configurations and multiple sizes to house 19mm or 25mm hose reels.
| FSTHC-05 (Surface mounted, single door) | FSTHC-05-A 760×760×260, FSTHC-05-B 780×780×260, FSTHC-05-C 840×640×260, FSTHC-05-D 840×640×360 (L×W×D) |
|---|---|
| FSTHC-06 (Recessed mounted, single door) | FSTHC-06-A 760×760×260, FSTHC-06-B 780×780×260, FSTHC-06-C 800×600×260, FSTHC-06-D 840×640×260 (L×W×D) |
| FSTHC-07 (Surface mounted, single door) | FSTHC-07-A 650×650×170, FSTHC-07-B 650×650×210 (L×W×D) |
| FSTHC-03 (Surface mounted, double door) | FSTHC-03-A 1030×730×230, FSTHC-03-B 1100×800×280 (L×W×D) |
| Hose specification | 25mm×30m / 19mm×30m (varies by model) |
| Configurations | Single door and double door; surface and recessed mounting |

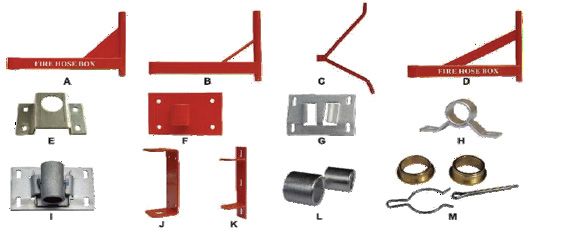

Accessory range for fire hose reel cabinets, including swing arms and mounting brackets, cabinet locks with door-stopper magnets and security seals, and hose holders.
| Hose Reel Arm & Bracket | Multiple types/models (items A–M) |
|---|---|
| Cabinet Lock | Includes door stopper magnet and security seal options (items A–H) |
| Holder | Various hose/extinguisher holder types (items A–H) |
| Material | Steel components |

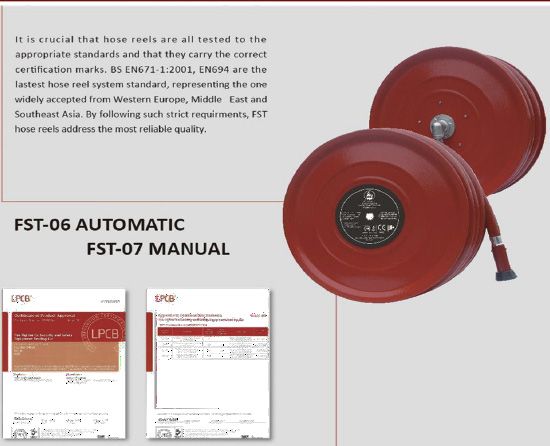

الطراز: FST06, FST07, FST08, FST10
LPCB-approved fire hose reels manufactured to BS EN671-1:2001 and EN694, available in automatic and manual versions with 19mm and 25mm hose in 30m lengths.
| FST-06 | Automatic; hose 25mm×Ø25/30m; reel height 550; reel width 570-560; reel depth 200/230; max cabinet size 760×700×230 |
|---|---|
| FST-07 | Manual; hose 25mm×30m; reel height 600; reel width 570-560; reel depth 180/210; max cabinet size 760×700×230 |
| FST-08 | Manual; hose 19mm×Ø25/30m; reel height 550; reel width 570-560; reel depth 200/230; max cabinet size 760×700×230 |
| FST-10 | Manual; hose 19mm×30m; reel height 550; reel width 570-560; reel depth 180/210; max cabinet size 760×720×230 |
| Standards / Approvals | LPCB, BS EN671-1:2001, EN694 |
| Types | FST-06 Automatic, FST-07 Manual (and Manual variants) |
الطراز: N-01-1, N-01-2, N-03-1, N-03-2, N-09-1, N-09-2, N-09-3, N-10-1, N-10-2, N-11-1, N-11-2, N-12-1, N-12-2

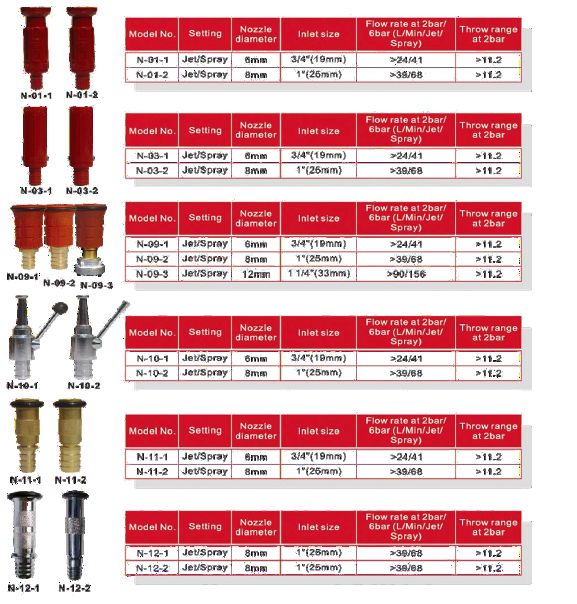

Adjustable jet/spray hose reel nozzles in a range of nozzle diameters and inlet sizes (3/4", 1", 1.1/4"), each rated for flow rate and throw range at 2 bar.
| Setting | Jet/Spray |
|---|---|
| Nozzle diameter | 6mm, 8mm, 12mm (varies by model) |
| Inlet size | 3/4" (19mm), 1" (25mm), 1.1/4" (33mm) depending on model |
| Flow rate at 2 bar | >24.4 l/1 (jet) ; >36/6.8 (spray) typical |
| Throw range at 2 bar | >11.2 m |
| Flow rate (N-09 12mm) | >90/156 |

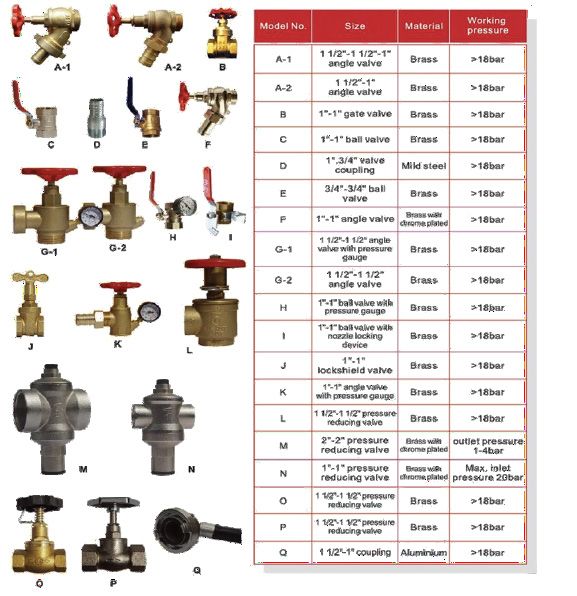

الطراز: A-1, A-2, B, C, D, E, F, G-1, G-2, H, I, J, K, L, M, N, O, P, Q
A range of brass landing valves, gate, ball and pressure-reducing valves and hydrant couplings in sizes from 3/4" to 2" rated above 18 bar working pressure, with pressure-reducing types delivering controlled outlet pressure. Used on fire hydrant and standpipe installations.
| A-1 1.1/2"/1.1/2"/1" single valve | Brass, >18 bar |
|---|---|
| A-2 1.1/2"/1" single valve | Brass, >18 bar |
| B 1"-1" gate valve | Brass, >18 bar |
| C 1"-1" ball valve | Brass, >18 bar |
| D 1".3/4" valve coupling | Mild steel, >18 bar |
| E 3/4"-3/4" ball valve | Brass, >18 bar |
| F 1"-1" angle valve | Brass (chrome plated), >18 bar |
| G-1 1.1/2"-1.1/2" single valve with pressure gauge | Brass, >18 bar |
| G-2 1.1/2"-1.1/2" single valve | Brass, >18 bar |
| H 1"-1" ball valve with pressure gauge | Brass, >18 bar |
| I 1"-1" ball valve with nozzle/locking device | Brass, >18 bar |
| J 1"-1" lock/band valve | Brass, >18 bar |
| K 1.1/4" angle valve with pressure gauge | Brass, >18 bar |
| L 1.1/2"-1.1/2" pressure reducing valve | Brass, >18 bar |
| M 2"-2" pressure reducing valve | Brass (chrome plated), outlet pressure 1-4 bar |
| N 1"-1" pressure reducing valve | Brass (chrome plated), Max. inlet pressure 20 bar |
| O 1.1/2"-1.1/2" pressure reducing valve | Brass, >18 bar |
| P 1.1/2"-1/2" pressure reducing valve | Brass, >18 bar |
| Q 1.1/2"-1" coupling | Aluminium, >18 bar |

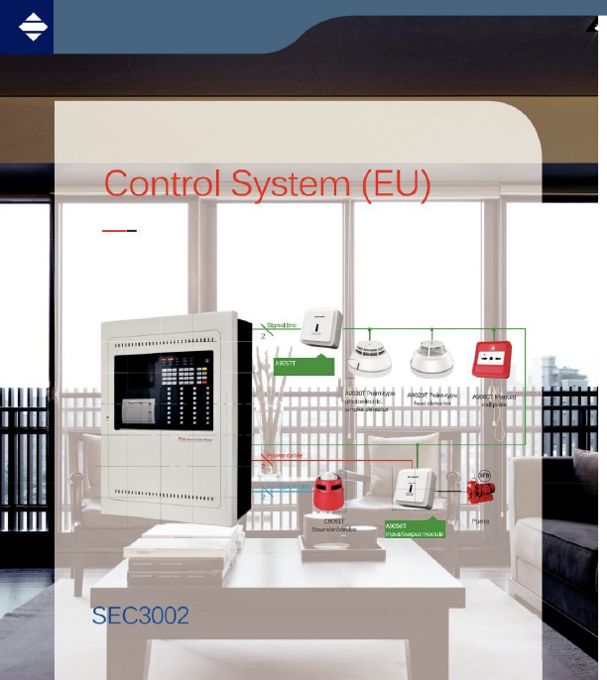

الطراز: SEC3002
The SEC3002 EU-version fire alarm control system, a networked control panel that links smoke/heat detectors, manual call points and sounders to manage detection and alarm signalling across a building.
| Model | SEC3002 |
|---|---|
| Type | Control System (EU) |
| System | Networked fire alarm control system with control panel, detectors, manual call points and sounders |

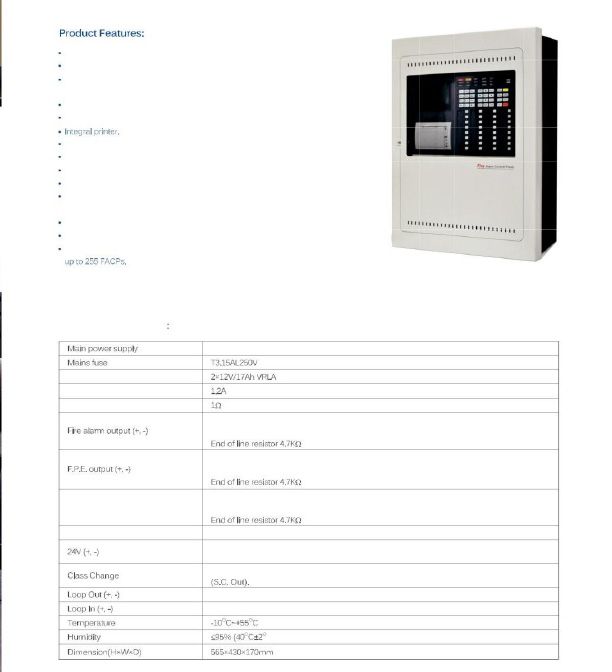

A loop-based fire alarm control panel with integral printer, dual 12V/17Ah backup batteries and networking of up to 255 panels, suitable for medium-to-large building fire detection systems.
| Mains fuse | T2.5A L 250V |
|---|---|
| Battery | 2 x 12V/17Ah VRLA |
| Battery charge current | 1.2A |
| Impedance | 1 Ω |
| Fire alarm output (+, -) | End of line resistor 4.7KΩ |
| F.P.E. output (+, -) | End of line resistor 4.7KΩ |
| Temperature | -10°C to +55°C |
| Humidity | ≤95% (40°C ±2°) |
| Dimension (H x W x D) | 565 x 430 x 170 mm |
| Capacity | Integral printer; up to 255 FACPs (networkable) |
الطراز: A9030T, A9060T

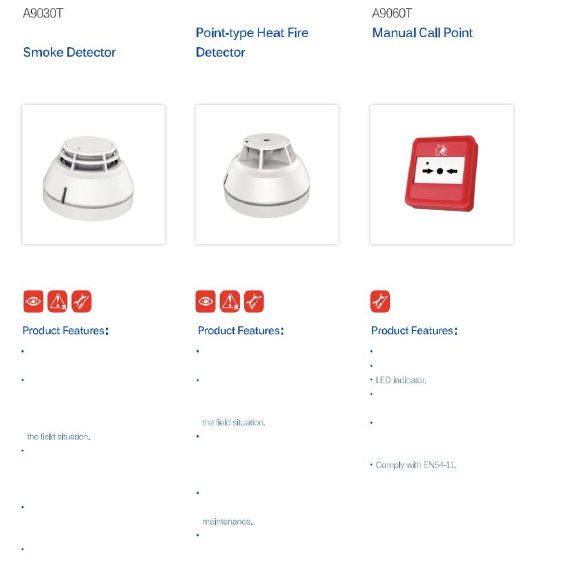

Addressable field devices including the A9030T optical smoke detector, a point-type heat fire detector, and the A9060T manual call point with LED indicator complying with EN54-11.
| A9030T | Smoke Detector |
|---|---|
| Point-type Heat Fire Detector | Heat detector (point type) |
| A9060T | Manual Call Point |
| Manual Call Point features | LED indicator; Comply with EN54-11 |

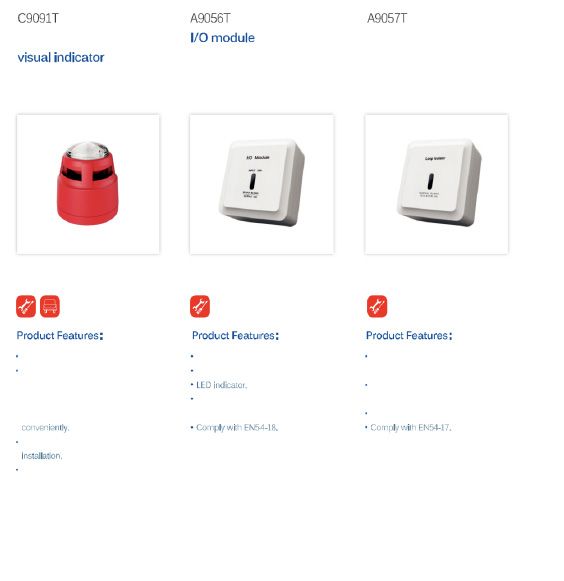

الطراز: C9091T, A9056T, A9057T
Loop accessories for the addressable fire alarm system: the C9091T visual indicator, the A9056T input/output module (EN54-18) and the A9057T loop isolator (EN54-17) for fault isolation on the detection loop.
| C9091T | Visual indicator |
|---|---|
| A9056T | I/O Module; LED indicator; Comply with EN54-18 |
| A9057T | Loop Isolator; Comply with EN54-17 |
الطراز: MN3010

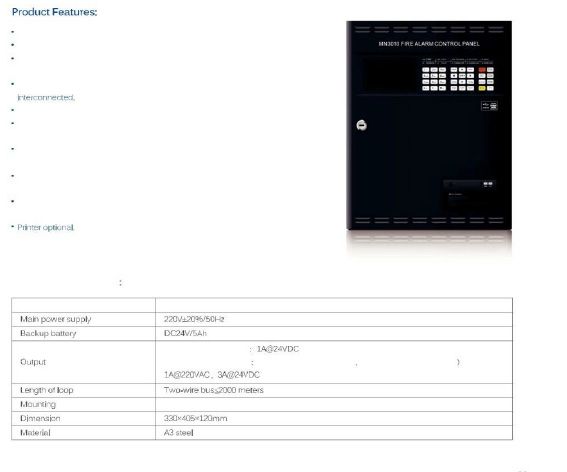

Conventional/addressable fire alarm control panel with two-wire bus loop wiring up to 2000 m, 220V AC mains with 24V battery backup, and an optional printer. Housed in an A3 steel enclosure for wall mounting.
| Main power supply | 220V ±20% / 50Hz |
|---|---|
| Backup battery | DC24V/5Ah |
| Output | 1A@24VDC; 1A@220VAC, 3A@24VDC |
| Length of loop | Two-wire bus ≤ 2000 meters |
| Dimension | 330×405×120mm |
| Material | A3 steel |
| Printer | Optional |
الطراز: JB-QBL-9108E, JB-QBL-9116E
Wall-mounted addressable fire alarm control panel available in 8-loop (9108E) and 16-loop (9116E) versions, with two-wire bus loops up to 2000 m and networking via CAN bus (up to 60 units) or TCP/IP (up to 255 units).
| Models | JB-QBL-9108E / JB-QBL-9116E |
|---|---|
| Input voltage / power | ≤ 200W |
| Length of loop | Two-wire bus ≤ 2000 meters |
| Network capacity | CAN bus ≤ 60 units, TCP/IP communication ≤ 255 units |
| Mounting | Wall-mount |
| Dimension | 580×440×125mm |
الطراز: JB-QGL-9100E
Large-capacity rack-type addressable fire alarm control panel supporting 2 to 80 loops with two-wire bus wiring up to 2000 m, and networking via CAN bus (up to 99 units) or TCP/IP (up to 255 units) for large building/campus systems.
| Model | JB-QGL-9100E |
|---|---|
| Input voltage / power | ≤ 200W |
| Loops | 2-80 loops |
| Length of loop | Two-wire bus ≤ 2000 meters |
| Network capacity | CAN bus ≤ 99 units, TCP/IP communication ≤ 255 units |
| Mounting | Rack Type |
| Dimension | 600×600×1800 mm |

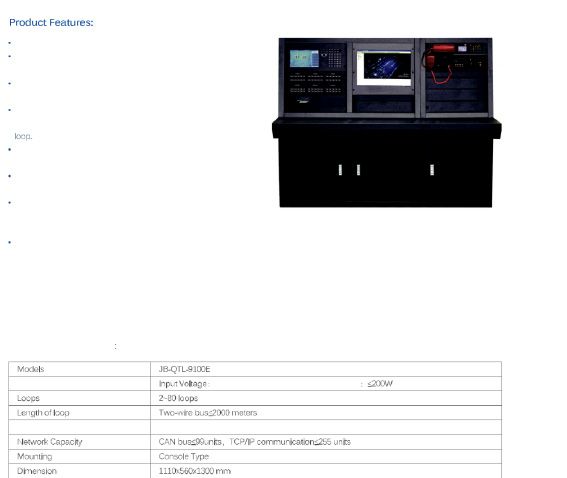

الطراز: JB-QTL-9100E
Console-type addressable fire alarm control panel supporting 2 to 80 loops with two-wire bus wiring up to 2000 m, networking via CAN bus (up to 99 units) or TCP/IP (up to 255 units). Suited to control rooms and fire command centres.
| Model | JB-QTL-9100E |
|---|---|
| Input voltage / power | ≤ 200W |
| Loops | 2-80 loops |
| Length of loop | Two-wire bus ≤ 2000 meters |
| Network capacity | CAN bus ≤ 99 units, TCP/IP communication ≤ 255 units |
| Mounting | Console Type |
| Dimension | 1110×560×1300 mm |

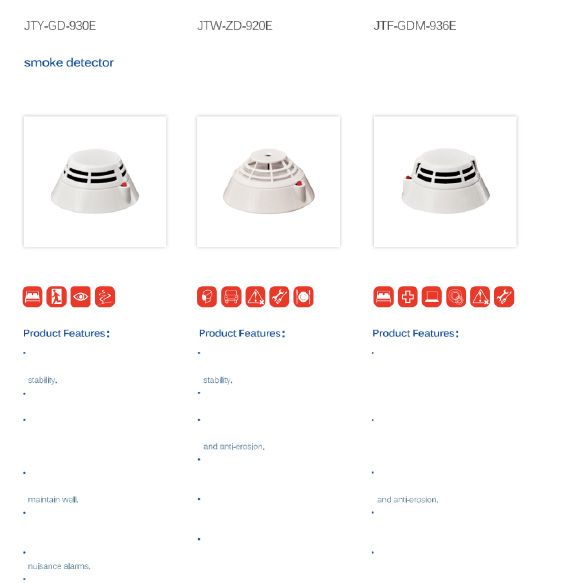

الطراز: JTY-GD-930E, JTW-ZD-920E, JTF-GDM-936E
Range of point-type smoke detectors (models JTY-GD-930E, JTW-ZD-920E and JTF-GDM-936E) designed for stable operation, anti-corrosion durability and reduced nuisance/false alarms in fire detection systems.
| JTY-GD-930E | Smoke detector |
|---|---|
| JTW-ZD-920E | Smoke detector |
| JTF-GDM-936E | Smoke detector |
| Type | Point-type smoke detectors |

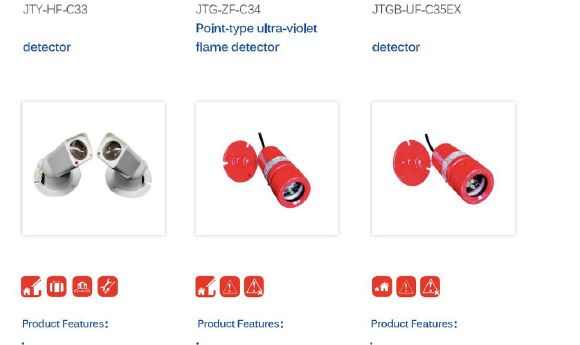

الطراز: JTG-HF-C33, JTG-ZF-C34, JTGB-UF-C35EX, J-SAP-M-962E, J-SAP-M-960E
Selection of point-type / ultra-violet flame detectors (JTG-HF-C33, JTG-ZF-C34, JTGB-UF-C35EX) and manual call points (J-SAP-M-962E, J-SAP-M-960E) for fire alarm systems.
| JTG-HF-C33 | Flame detector |
|---|---|
| JTG-ZF-C34 | Point-type ultra-violet flame detector |
| JTGB-UF-C35EX | Flame detector |
| J-SAP-M-962E | Manual call point |
| J-SAP-M-960E | Manual call point |
الطراز: JK-952E, KZ-953E, KZJ-956E, GL-957E, SG-991E
Addressable interface modules for fire alarm systems: input module (JK-952E), output/control module (KZ-953E), combined input/output module (KZJ-956E), GL-957E module, and SG-991E sounder/strobe alarm device.
| JK-952E | Input Module |
|---|---|
| KZ-953E | Output Module |
| KZJ-956E | Input/Output Module |
| GL-957E | Module |
| SG-991E | Sounder/strobe (alarm device) |

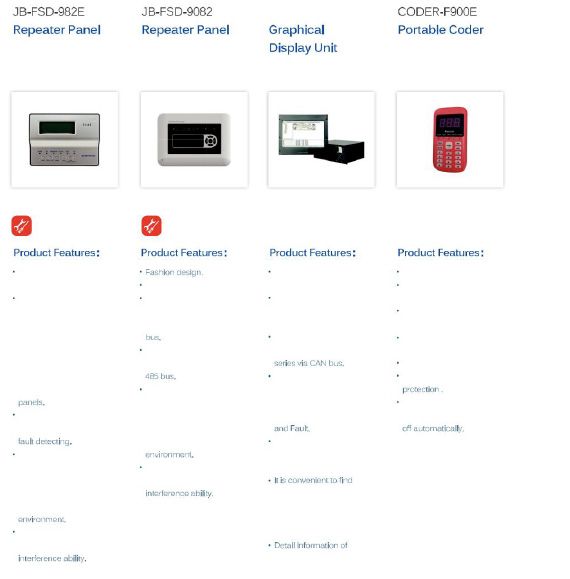

الطراز: JB-FSD-962E, JB-FSD-9062, CODER-F900E
Fire alarm peripherals: repeater (mimic) panels (JB-FSD-962E, JB-FSD-9062) for remote status indication, a graphical display unit that connects over CAN bus to show alarm/fault and point details, and a CODER-F900E portable coder for addressing devices.
| JB-FSD-962E | Repeater Panel |
|---|---|
| JB-FSD-9062 | Repeater Panel |
| Graphical Display Unit | Connects over CAN bus; displays alarm/fault and detailed point information |
| CODER-F900E | Portable Coder |
الطراز: GB9221, KT9213, SPK-X3W/X5W-E, SPK-B3W/B5W-E

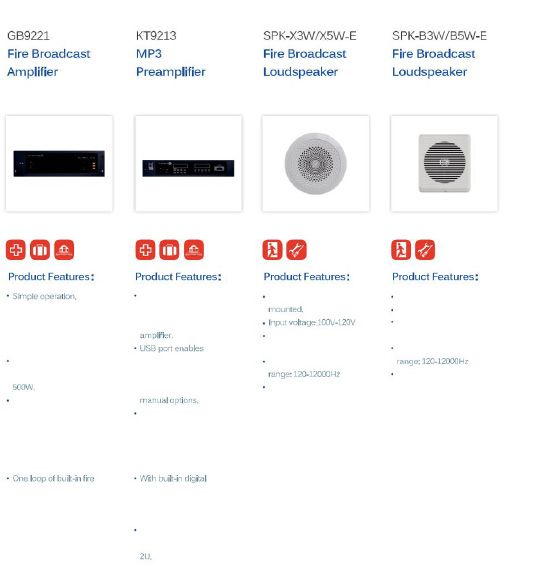

A fire emergency voice-broadcast (public address) lineup comprising the GB9221 broadcast amplifier, KT9213 MP3 preamplifier with USB, and SPK-series ceiling and wall loudspeakers for evacuation announcements. Loudspeakers operate at 70V/100V line voltage.
| GB9221 | Fire Broadcast Amplifier |
|---|---|
| KT9213 | MP3 Preamplifier (with USB port; supports one-key disk disturb / digital recording) |
| SPK-X3W/X5W-E | Fire Broadcast Loudspeaker (ceiling type), input voltage 70V/100V |
| SPK-B3W/B5W-E | Fire Broadcast Loudspeaker (wall/box type), range 100V/100V |
| Function | Voice evacuation / fire emergency broadcast system |
الطراز: DH9251/B, DH9271, DH9261/B, DH9272

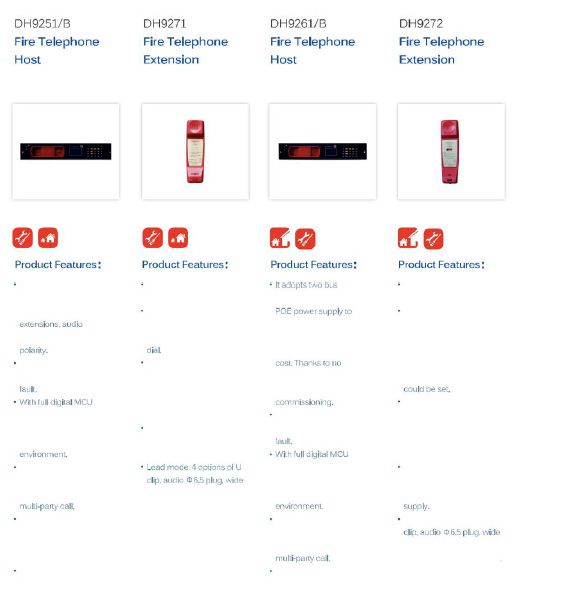

A dedicated fire telephone communication system with rack/panel-mounted host stations (DH9251/B, DH9261/B) and handset extensions (DH9271, DH9272) for emergency two-way communication. POE-powered, wired configuration.
| DH9251/B | Fire Telephone Host |
|---|---|
| DH9261/B | Fire Telephone Host |
| DH9271 | Fire Telephone Extension |
| DH9272 | Fire Telephone Extension |
| Power | POE power supply |
| Configuration | Wired-mode fire telephone system (host stations support multiple extensions) |
الطراز: JTY-GD-930KE, JTW-ZD-920KE, SG-991KE, J-SAP-M-960KE

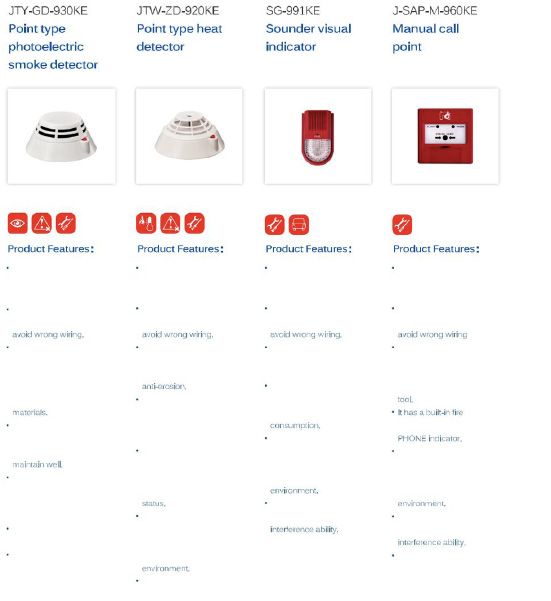

Point-type fire detection devices including a photoelectric smoke detector, heat detector, sounder/visual indicator and manual call point. Built with anti-erosion materials and reverse-polarity protection to avoid wrong wiring.
| JTY-GD-930KE | Point-type photoelectric smoke detector |
|---|---|
| JTW-ZD-920KE | Point-type heat detector |
| SG-991KE | Sounder visual indicator |
| J-SAP-M-960KE | Manual call point |
| Features | Reverse-polarity protection (avoid wrong wiring), anti-erosion materials |
الطراز: JB-QBL-6001

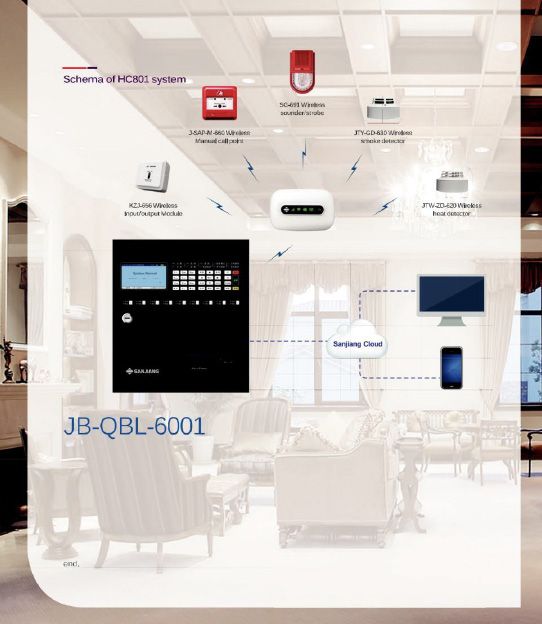

The JB-QBL-6001 is the central fire alarm control panel of the HC601 system, coordinating wired and wireless field devices (detectors, alarms, call points) and linking to the Sanjiang Cloud platform for remote monitoring.
| System | HC601 fire alarm system |
|---|---|
| Type | Fire alarm control panel (control unit) |
| Connectivity | Sanjiang Cloud connected; supports wired and wireless field devices |
| Field devices | Wireless smoke/heat detectors, sound & light alarm, manual call point |
الطراز: JTY-GD-630, JTW-ZD-620, J-SAP-M-660, SG-691

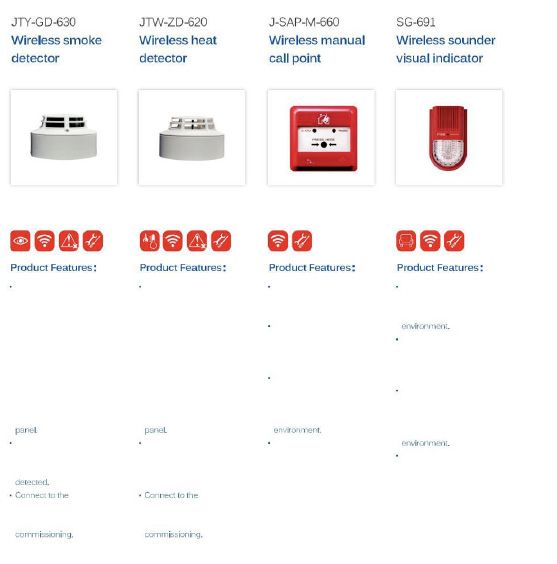

A wireless fire detection device family covering a smoke detector, heat detector, manual call point and sounder/visual indicator. Devices connect wirelessly to the control panel for simplified installation and commissioning.
| JTY-GD-630 | Wireless smoke detector |
|---|---|
| JTW-ZD-620 | Wireless heat detector |
| J-SAP-M-660 | Wireless manual call point |
| SG-691 | Wireless sounder visual indicator |
| Connectivity | Wireless; connects to control panel / commissioning |

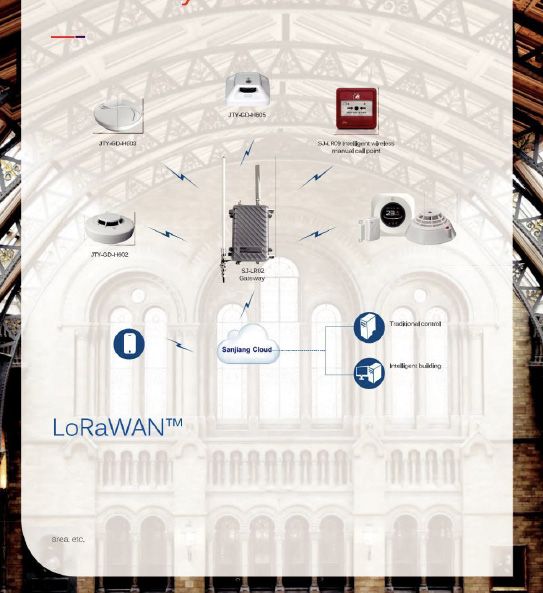

الطراز: SJ-LR09 (gateway), JTY-GD-H602, JTW-ZD-H602, J-SAP-M call point
A LoRaWAN-based wireless fire alarm system in which battery/wireless field detectors and call points report through an SJ-LR09 gateway to the Sanjiang Cloud platform, enabling intelligent-building and facilities-management integration over long-range, low-power wireless.
| Network | LoRaWAN wireless |
|---|---|
| Gateway | SJ-LR09 LoRaWAN gateway |
| Field devices | Wireless smoke detector, wireless heat detector, manual emergency call point |
| Platform | Sanjiang Cloud (facilities management / intelligent building integration) |

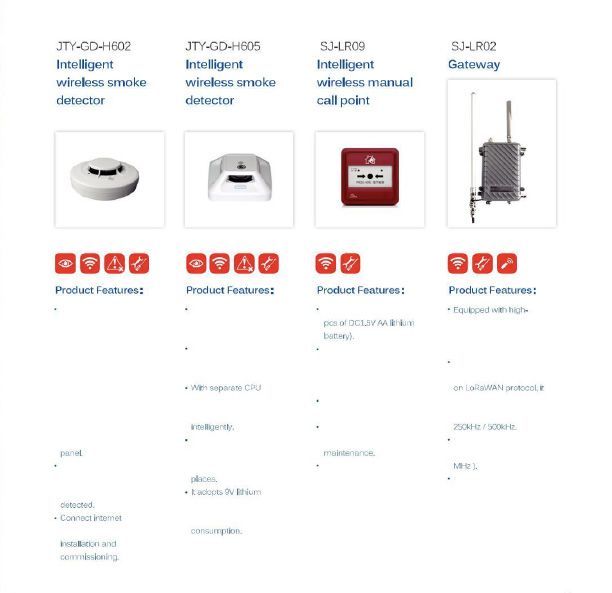

الطراز: JTY-GD-H602, JTY-GD-H605, SJ-LR09, SJ-LR02
An intelligent wireless smoke detection family (JTY-GD-H602/H605) with manual call point and the SJ-LR02 gateway. Battery-powered, cloud-connected devices using LoRaWAN for installation without wiring and remote management.
| JTY-GD-H602 | Intelligent wireless smoke detector |
|---|---|
| JTY-GD-H605 | Intelligent wireless smoke detector (supports CCU) |
| SJ-LR09 | Intelligent wireless manual call point |
| SJ-LR02 | Gateway (LoRaWAN protocol) |
| Connectivity | Wireless; cloud-connected, equipped with high-capacity battery |
الطراز: JTY-GD-H365, A101, JTY-GD-H366, JTY-GD-H369, JTY-GD-H362, JTY-GD-H363
A range of stand-alone domestic/commercial smoke alarms in various housings, including the LPCB-approved JTY-GD-H365. Self-contained point smoke alarms for residential and light-commercial fire detection.
| JTY-GD-H365 | Smoke alarm, LPCB Approval |
|---|---|
| A101 | Smoke alarm |
| JTY-GD-H366 | Smoke alarm |
| JTY-GD-H369 | Smoke alarm |
| JTY-GD-H362 | Smoke alarm |
| JTY-GD-H363 | Smoke alarm |
| Approval | LPCB approved (JTY-GD-H365) |
الطراز: F161, F162, JTQ-BF-06T, JTQ-BF-09T, JTQ-BF-107, JTQ-DF-03
A range of combustible gas and carbon monoxide detectors for domestic and commercial installations, including LCD-display and compact wall-mount models. Suitable for detecting flammable gas leaks and CO build-up.
| F161 | Combustible gas detector (LCD display unit) |
|---|---|
| F162 | Combustible gas detector (round wall-mount unit) |
| JTQ-BF-06T | Combustible gas detector |
| JTQ-BF-09T | Combustible gas detector |
| JTQ-BF-107 | Combustible gas detector |
| JTQ-DF-03 | Carbon Monoxide (CO) detector |

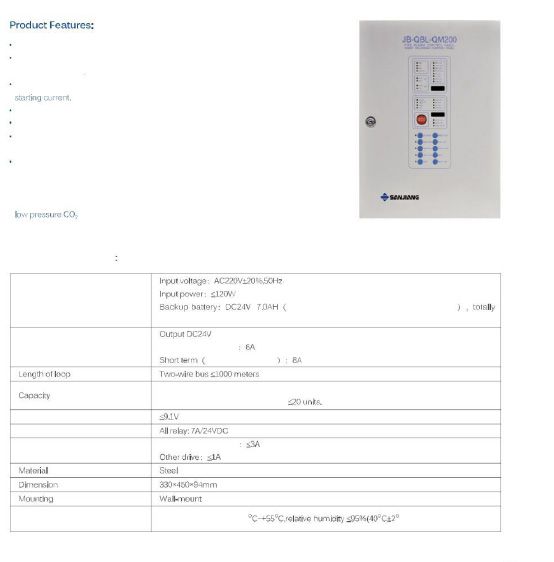

الطراز: JB-QBL-QM200E
Wall-mounted gas extinguishing release control panel for controlling automatic fire suppression systems (including low-pressure CO2). Supports a two-wire bus loop up to 1000 m with capacity for up to 20 units and DC24V backup-battery operation.
| Input voltage | AC 220V ±20%, 50Hz |
|---|---|
| Input power | ≤120W |
| Backup battery | DC24V 7.0AH |
| Output | DC24V; 6A; short term 8A |
| Length of loop | Two-wire bus ≤1000 meters |
| Capacity | ≤20 units |
| Relay | All relay 7A/24VDC |
| Drive current | ≤3A; other drive ≤1A |
| Material | Steel |
| Dimension | 330 x 450 x 94 mm |
| Mounting | Wall-mount |
| Working environment | 0°C to +55°C, relative humidity ≤95% (40°C ±2°) |

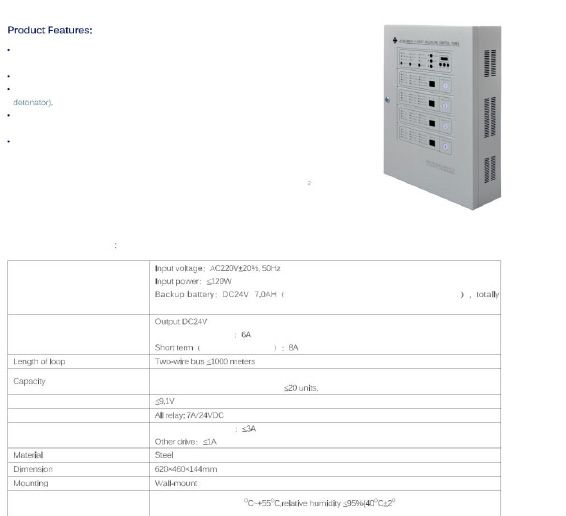

الطراز: JB-QBL-QM200E/4
Larger 4-zone version of the wall-mounted gas extinguishing release control panel for multi-zone automatic fire suppression systems. Shares the QM200E electrical platform with a larger steel enclosure (620 x 460 x 144 mm) for multiple releasing circuits.
| Input voltage | AC 220V ±20%, 50Hz |
|---|---|
| Input power | ≤120W |
| Backup battery | DC24V 7.0AH |
| Output | DC24V; 6A; short term 8A |
| Length of loop | Two-wire bus ≤1000 meters |
| Capacity | ≤20 units |
| Relay | All relay 7A/24VDC |
| Drive current | ≤3A; other drive ≤1A |
| Material | Steel |
| Dimension | 620 x 460 x 144 mm |
| Mounting | Wall-mount |
| Working environment | 0°C to +55°C, relative humidity ≤95% (40°C ±2°) |

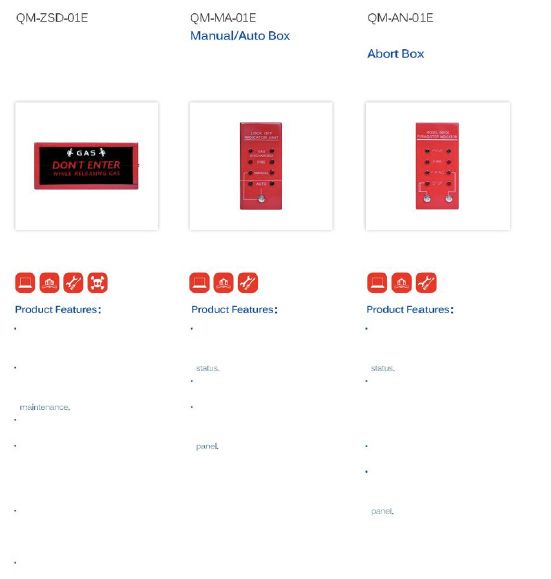

الطراز: QM-ZSD-01E, QM-MA-01E, QM-AN-01E
A set of field-mounted accessory boxes for gas suppression systems: a discharge/disable indicator box, a manual/auto selector box, and an abort box. They connect to the gas releasing control panel to indicate and control suppression-system status.
| QM-ZSD-01E | Disable / discharge indicator box ('DON'T ENTER WHILE RELEASING GAS') |
|---|---|
| QM-MA-01E | Manual/Auto box (lock-key indication unit; status, manual/auto selection) |
| QM-AN-01E | Abort box (abort gas release; status indication) |
| Function | Field control/indication units for gas releasing control panel |

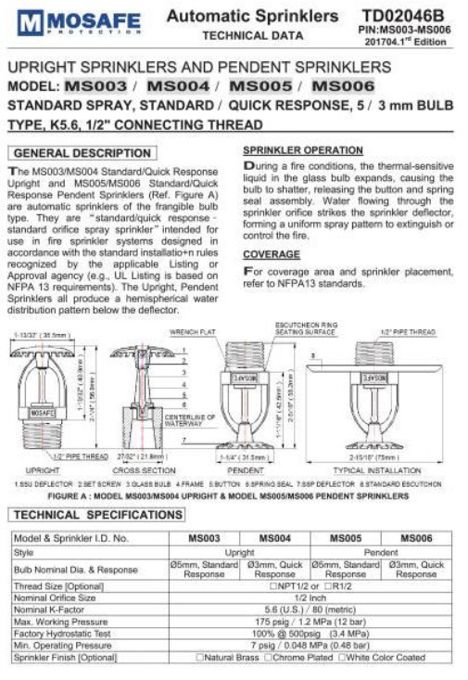

الطراز: MSO03, MSO04, MSO05, MSO06 (TD02046B / PSN MSO03-MSO06)
MOSAFE upright and pendent automatic spray sprinklers with a thermally sensitive glass bulb for fixed fire-protection systems. Available in standard or quick response with a 1/2" K5.6 connecting thread.
| Type | Upright & Pendent sprinklers, Standard Spray, Standard / Quick Response |
|---|---|
| Bulb | 5 / 3 mm glass bulb |
| Thread Type | K5.6, 1/2" connecting thread |
| Bulb Nominal Dia. & Response | 5 mm = Standard Response; 3 mm = Quick Response |
| Thread Size (Optional) | NPT1/2 or 3/4 (15) |
| Nominal Orifice Size | 1/2 inch |
| Max. Working Pressure | 175 psig / 1.2 MPa (12 bar) |
| Factory Hydrostatic Test | 100% @ 500 psig (3.4 MPa) |
| Min. Operating Pressure | 7 psig / 0.048 MPa (0.48 bar) |
| Sprinkler Finish (Optional) | Natural Brass / Chrome Plated / White Color Coated |

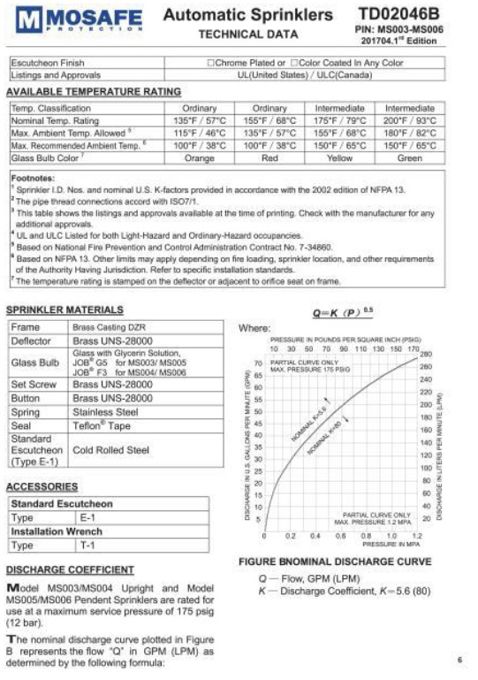

الطراز: MSO03-MSO06 (TD02046B)
Temperature-rating, glass-bulb color code, and material specification data for the MOSAFE TD02046B upright and pendent sprinkler line, including discharge-coefficient (K-factor) versus flow performance curves.
| Temperature Classifications | Ordinary, Intermediate (with corresponding bulb colors) |
|---|---|
| Ordinary Rating | 135 F / 57 C (per NFPA 13) |
| Intermediate Rating | 175 F / 79 C and higher per NFPA 13 |
| Bulb Color Coding | Glass bulb liquid color indicates temperature rating |
| Frame Material | Brass UNS C84400 (cast) |
| Deflector Material | Brass UNS C26000 |
| Glass Bulb | Glass with Glycerin solution; JOB-DD for MSO03/MSO04, JOB-T3 for MSO05/MSO06 |
| Sealing Assembly / Set Screw | Brass UNS C26000 set screw; Stainless steel components |
| Seal | Teflon Tape |
| Escutcheon (Standard, Type E-1) | Cold Rolled Steel |

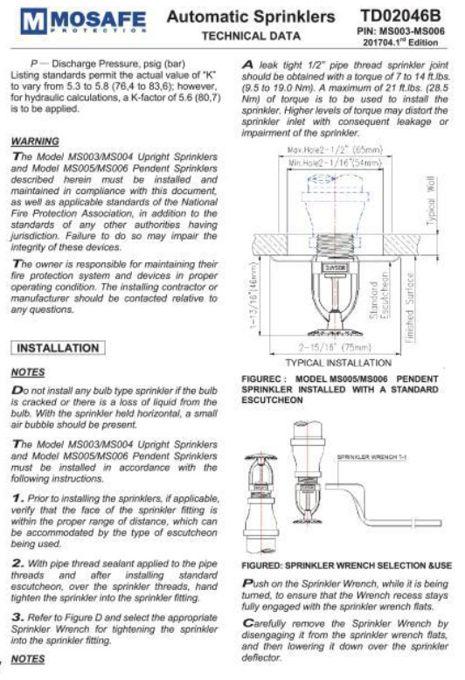

الطراز: MSO03-MSO06 Pendent (TD02046B)
Installation instructions for the MOSAFE pendent automatic sprinklers (TD02046B), covering correct wrench use, recommended make-in torque, and bulb-handling precautions.
| Installation Torque | 8.0 to 18.0 ft-lbs (4 turns) typical for the pendent sprinkler |
|---|---|
| Reference Code | NFPA / manufacturer instructions to be followed |
| Wrench | Pendent sprinklers installed with the appropriate sprinkler wrench; do not over-tighten |
| Installation Caution | Do not install any bulb-type sprinkler if bulb is cracked or there is loss of liquid from the bulb |
| Orientation | Pendent installation with standard escutcheon |
الطراز: PSN 020461 (Upright), PSN 020462 (Pendent) - TD02046B
Care, maintenance, and ordering reference for the MOSAFE TD02046B sprinklers, including the Product Selection Number (PSN) guides for upright (PSN 020461) and pendent (PSN 020462) configurations.
| Upright Ordering Code | PSN 020461 X1 X2 - MSO03/MSO06 Standard / Quick Response |
|---|---|
| Pendent Ordering Code | PSN 020462 X1 X2 - MSO03/MSO06 Standard / Quick Response |
| X1 = Temperature / Response | 135 F / 57 C Standard Response; 155 F / 68 C Standard; 175 F / 79 C Quick Response, etc. |
| X2 = Finish | NPT1/2 Natural Brass; NPT1/2 Chrome Plated; NPT1/2 White Color Coated |
| Care | Sprinklers must be stored where temperatures do not exceed 100 F / 38 C |
| Maintenance / Inspection | Per NFPA - do not paint, alter or repair; replace damaged sprinklers |
الطراز: PSN 0608111, PSN 0608112, PSN 0608109 - TD02046B
Accessory listing for the MOSAFE TD02046B sprinkler range: standard 1/2" escutcheons (chrome and white) and the Type T-1 sprinkler wrench, with part numbers, weights, and a units conversion table.
| Type E-1 1/2" Standard Escutcheon (chrome finish) | PSN 0608 111 |
|---|---|
| Type E-1 1/2" Standard Escutcheon (white painted finish) | PSN 0608 112 |
| Type T-1 Wrench | PSN 0608 109 |
| Weight - 1/2" Orifice MSO03/MSO04 Upright | 2.9 oz (80 g) |
| Weight - 1/2" Orifice MSO05/MSO06 Pendent | 2.9 oz (80 g) |
| E-1 Standard Escutcheon Weight | 0.6 oz (18 g) |
| T-1 Sprinkler Wrench Weight | 18 oz (510 g) |
الطراز: MS017, MS018 (TD02063 / PSN MS017-MS018)
MOSAFE horizontal sidewall automatic spray sprinklers (TD02063) for areas where sidewall installation is required, with a glass-bulb thermal element. Available in standard or quick response with a 1/2" K5.6 connecting thread.
| Type | Horizontal Sidewall sprinklers, Standard Spray, Standard / Quick Response |
|---|---|
| Bulb | 5 / 3 mm glass bulb |
| Thread Type | K5.6, 1/2" connecting thread |
| Response | 5 mm bulb = Standard Response; 3 mm bulb = Quick Response |
| Thread Size | NPT 1/2 or 3/4 (15) |
| Nominal Orifice Size | 1/2 inch |
| Max. Working Pressure | 175 psig / 1.2 MPa (12 bar) |
| Factory Hydrostatic Test | 100% @ 500 psig (3.4 MPa) |
| Min. Operating Pressure | 7 psig / 0.048 MPa (0.48 bar) |
| Sprinkler Finish (Optional) | Natural Brass / Chrome Plated / White Color Coated |
الطراز: MS017, MS018 (TD02063)
Temperature-rating, glass-bulb color code, and material specifications for the MOSAFE TD02063 horizontal sidewall sprinklers, with discharge-coefficient (K-factor) flow versus pressure performance curves.
| Temperature Classifications | Ordinary and Intermediate per NFPA 13 |
|---|---|
| Ordinary Rating | 135 F / 57 C; 155 F / 68 C |
| Intermediate Rating | 175 F / 79 C; 200 F / 93 C and higher per NFPA 13 |
| Bulb Color Coding | Glass bulb liquid color denotes temperature rating |
| Frame Material | Bronze Casting C84400 |
| Deflector Material | Brass UNS C26000 |
| Glass Bulb | Glass with Glycerin solution (JOB-T3 / JOB-DD) |
| Set Screw / Seal | Brass UNS C26000; Teflon Tape seal; Stainless steel components |
| Escutcheon (Standard, Type E-1) | Cold Rolled Steel |
الطراز: MS017, MS018 Horizontal Sidewall (TD02063)
Installation and deflector-leveling instructions for the MOSAFE TD02063 horizontal sidewall sprinklers, including correct mounting orientation, recommended make-in torque, and bulb-handling precautions.
| Installation Torque | 8 to 18 ft-lbs (4 turns); maximum make-in torque shall not exceed 21 ft-lbs (28.5 N.m) |
|---|---|
| Deflector Orientation | Word TOP on the deflector must face upward toward the ceiling |
| Sidewall Centerline | Centerline of waterway horizontal and perpendicular to the back wall; must be level |
| Wrench | Use the appropriate sprinkler wrench (Ref. Figure A); do not over-tighten or damage deflector |
| Bulb Handling Caution | Do not install any bulb-type sprinkler if the bulb is cracked or has lost liquid |

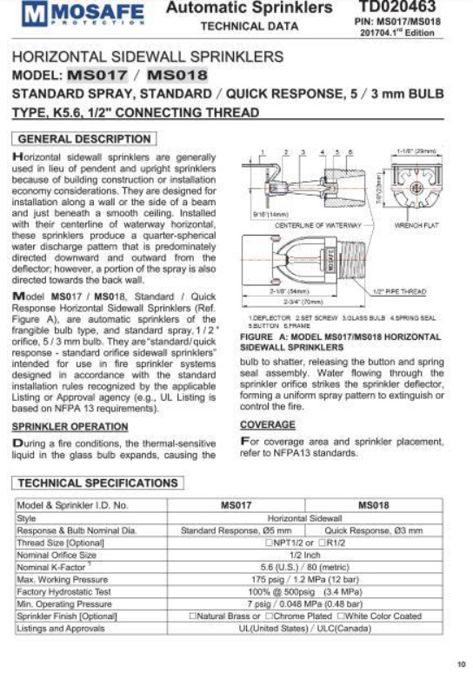

الطراز: MS017 / MS018
MOSAFE standard/quick response horizontal sidewall automatic sprinkler (models MS017/MS018) for fire protection systems. Activates automatically when the rated temperature is reached, distributing water to control or extinguish fire. MEA approved.
| P/N | MS017/MS018 |
|---|---|
| Document | TD020463 |
| Edition | 2017/04, 1st Edition |
| Approval | MEA Approved |
| Type | Standard / Quick Response Horizontal Sidewall |
| Response | Specify 1/2'' orifice, (specify temperature rating) |
| Ordering Part Number | PSN 020463X1 X2 |
| Thread Size | 1/2'' NPT |
الطراز: MS017 / MS018
Accessories for MOSAFE MS017/MS018 automatic sprinklers, including standard escutcheons (chromate and white painted finishes) and the T-1 sprinkler wrench, ordered separately as applicable.
| P/N | MS017/MS018 |
|---|---|
| Document | TD020463 |
| Type E-1 1/2'' Standard Escutcheon (chromate finish) | PSN 0608 111 |
| Type E-1 1/2'' Standard Escutcheon (white painted finish) | PSN 0608 112 |
| Type T-1 Wrench | PSN0109 |
| Weight - 1/2'' Orifice Model MS017 | 2.8 oz. (80 g) |
| Weight - MS018 Horizontal Sidewall | 1 lb. |
| Weight - E-1 Standard Escutcheon | 0.6 oz. (18 g) |
| Weight - T-1 Sprinkler Wrench | 18 oz. (510 g) |
الطراز: MS007 / MS008
MOSAFE concealed pendent automatic fire sprinkler (models MS007/MS008) with a low-profile cover plate that conceals the sprinkler until activation. Standard spray, standard/quick response with 5/3 mm glass bulb, K5.6, 1/2'' connecting thread. UL/ULC/FM/MEA approved.
| P/N | MS007/MS008 |
|---|---|
| Document | TD020454 |
| Edition | 2017/04, 1st Edition |
| Approvals | UL, ULC, FM, MEA Approved |
| Type | Concealed Pendent |
| Spray Type | Standard Spray / Standard / Quick Response |
| Response | 5 / 3 mm bulb |
| K-Factor | K5.6 |
| Connecting Thread | 1/2'' |
الطراز: MS007 / MS008
Technical specification sheet for the MOSAFE MS007/MS008 concealed pendent sprinkler covering response type, K-factor, working pressure, and cover plate finish options. Includes frame, deflector, sealing and bulb material data.
| Model & Sprinkler I.D. No. | MS007 / MS008 |
|---|---|
| Style | Concealed Pendent |
| Response - Bulb Nominal Dia. | Standard Response 5mm / Quick Response 3mm |
| Thread Size | NPT 1/2 or R1/2'' |
| Nominal Orifice Size | 1/2 inch |
| Nominal K-Factor | 5.6 (U.S.) / 80 (metric) |
| Max. Working Pressure | 175 psig (12 bar) |
| Factory Hydrostatic Test | 100% @ 500 psig (3.4 MPa) |
| Min. Operating Pressure | 7 psig (0.05 MPa) |
| Cover Plate Finish | Painted White or Chrome Plated or Color Coated in Any Color |
الطراز: MS007 / MS008
Materials, discharge coefficient curve and installation guidance for the MOSAFE MS007/MS008 concealed pendent sprinkler, including the mounting cup, brass enclosure and cover plate, ejection spring and T-1 installation wrench.
| P/N | MS007/MS008 |
|---|---|
| Document | TD020454 |
| Seat Material | Teflon Tape |
| Mounting Cup | Low Carbon Steel, UNS-G10080 |
| Enclosure Material | Brass UNS-C36000 |
| Cover Plate Material | Brass UNS-C38000 |
| Ejection Spring | Stainless Steel UNS-S30452 |
| Label | Mylar (Sticky-back) |
| Installation Wrench Type | T-1 |
الطراز: MS007 / MS008
Installation procedure and wrench selection for the MOSAFE MS007/MS008 concealed pendent sprinkler, detailing mounting cup torque values and cover plate assembly engagement using the T-1 wrench.
| P/N | MS007/MS008 |
|---|---|
| Document | TD020454 |
| Installation Wrench | T-1 sprinkler wrench |
| Mounting Cup Torque | 7 to 14 ft.lbs (9.5 to 19.0 Nm) |
| Cover Plate Assembly Torque | 2-1/2 inch (64 mm) to 2-13/16 inch (72 mm) |
الطراز: MS007 / MS008
Care and maintenance instructions plus protective cap detail for the MOSAFE MS007/MS008 concealed pendent sprinkler, including typical pendent sprinkler installation guidance and handling precautions.
| P/N | MS007/MS008 |
|---|---|
| Document | TD020454 |
| Accessory | Protective Cap |
| Maintenance Note | Sprinklers must never be painted, plated, coated or otherwise altered; replace if damaged |
الطراز: MS007 / MS008
Ordering procedure, part number selection table and accessories for the MOSAFE MS007/MS008 concealed pendent sprinkler, listing cover plate assemblies, temperature/response options and component weights.
| P/N | MS007/MS008 |
|---|---|
| Document | TD020454 |
| Ordering Part Number | PSN 020454 X1 X2 |
| Cover Plate Assembly (Standard Response) | PSN 0159 2100 |
| Weight - 1/2'' Orifice Model MS007 / MS008 Concealed Pendent | 6.0 oz. (170 g) |
| Weight - T-1 Sprinkler Wrench | 18 oz. (510 g) |
| Response Options | 57°C / 68°C / 79°C / 93°C / 141°C / 182°C / 227°C / 260°C Standard & Quick Response |

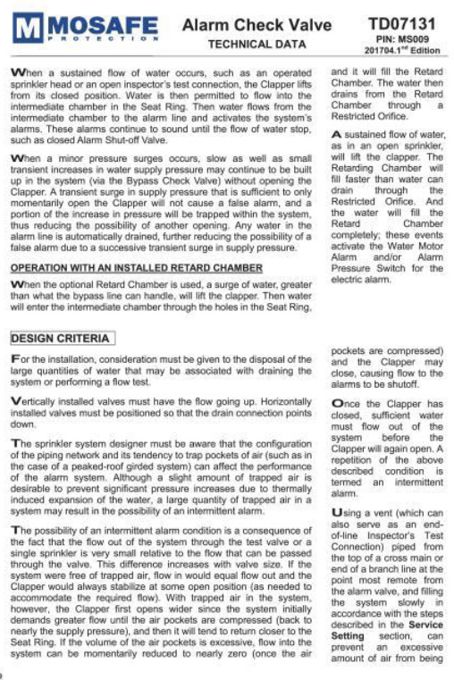

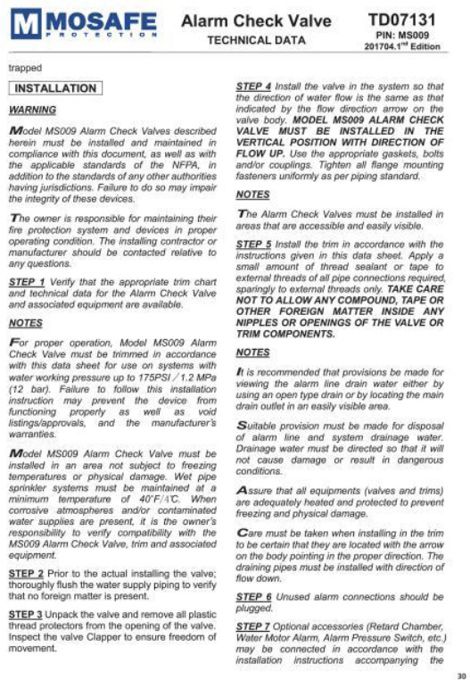

الطراز: MS009 / TD007131
MOSAFE Model MS009 Alarm Check Valve is a UL-listed, FM-approved single swing-type check valve installed in wet pipe sprinkler systems to permit water flow into the system when one or more sprinklers operate. It is rated to 175 psi (12 bar) working pressure and supplied for 4" and 6" (DN100/DN150) vertical installation.
| Model | MS009 |
|---|---|
| Working pressure | 175 psi (12 bar) |
| Sizes | 4" & 6" (DN100 / DN150) |
| Installation | Vertical |
| Listings / Approvals | UL Listed, FM Approved |
| Document / PIN | TD007131, PIN MS009, 2017/04 1st Edition |
الطراز: TD07131 / MS009
Technical-data sheet for the MOSAFE MS009 Alarm Check Valve giving the nominal hydraulic friction-loss curve (Hazen & Williams C=120), with equivalent straight-pipe lengths of 28 ft (8.6 m) for the 4" valve and 52 ft (15.8 m) for the 6" valve. Lists standard trim packages and optional accessories such as retard chamber, water motor alarm and alarm pressure switch.

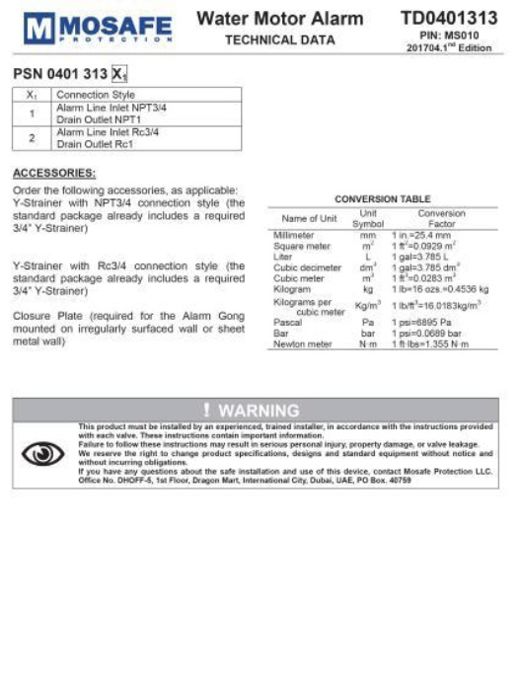

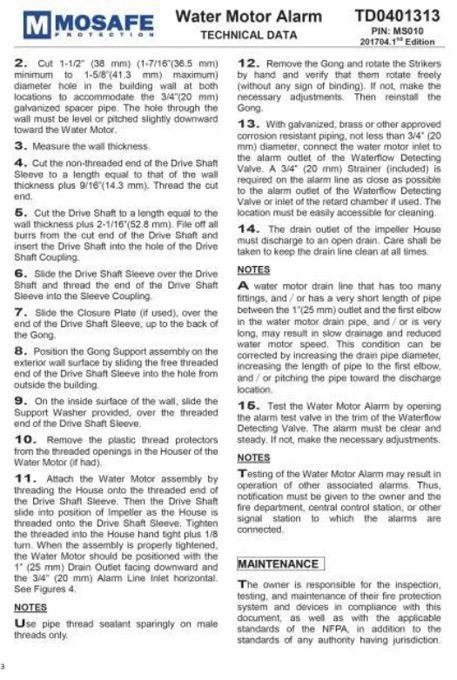

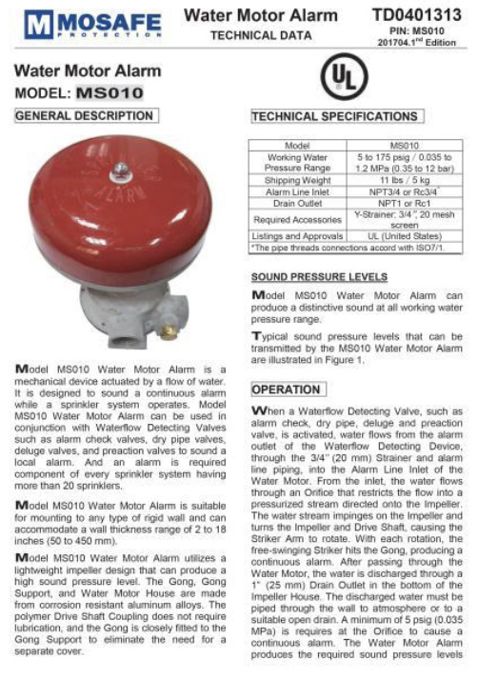

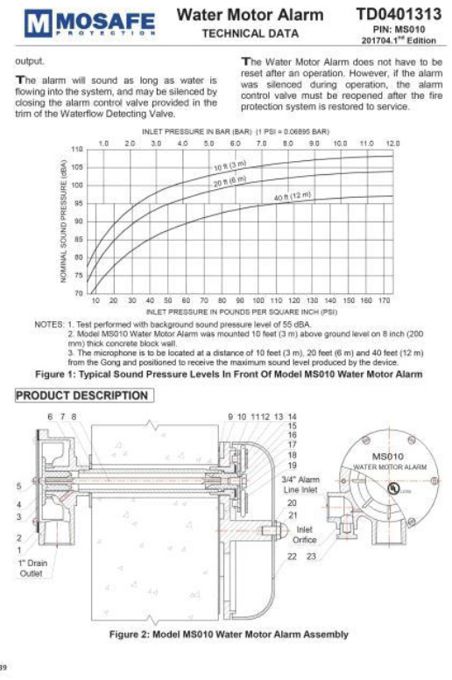

| Data | Nominal hydraulic friction loss (Figure 1) |
|---|---|
| Equivalent length, 4" valve | 28 feet (8.6 m) |
| Equivalent length, 6" valve | 52 feet (15.8 m) |
| Friction loss basis | Hazen & Williams formula with C=120 |
| Standard trim packages | All necessary nipples and fittings; air relief connection; water motor alarm connection |
| Optional accessories | Retard Chamber; Water Motor Alarm; Alarm Pressure Switch |
الطراز: TD07131 / MS009

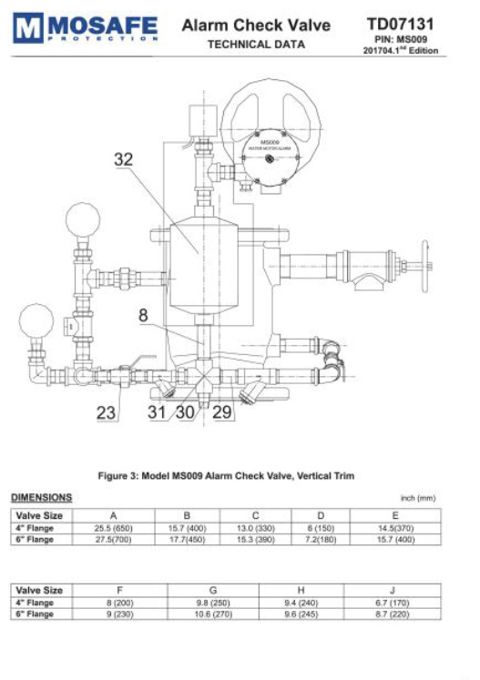

Dimensional drawing and parts list for the MOSAFE MS009 Alarm Check Valve in 4" (DN100) and 6" (DN150) flanged sizes. Identifies component materials including a ductile iron body and cover, bronze clapper, and stainless steel (SS304) seat ring and spring.
| Valve sizes | 4" Flange (DN100) and 6" Flange (DN150) |
|---|---|
| 4" Flange dimension H | 11.81 (300) |
| 6" Flange dimension H | 13.50 (343) |
| End connection | Flanged |
| Body / cover material | Ductile iron |
| Clapper / seat ring | Bronze / Stainless steel SS304 |
| Spring | Stainless steel SS304 |
| Reference | Figure 2, MS009 Alarm Check Valve partial sections; dimensions in mm/inch |
الطراز: TD07131 / MS009

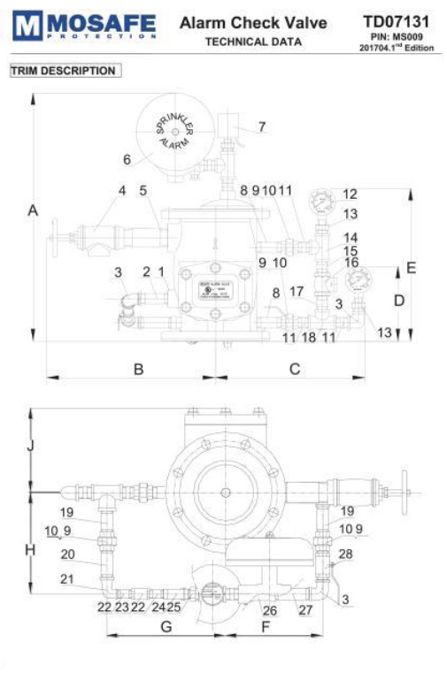

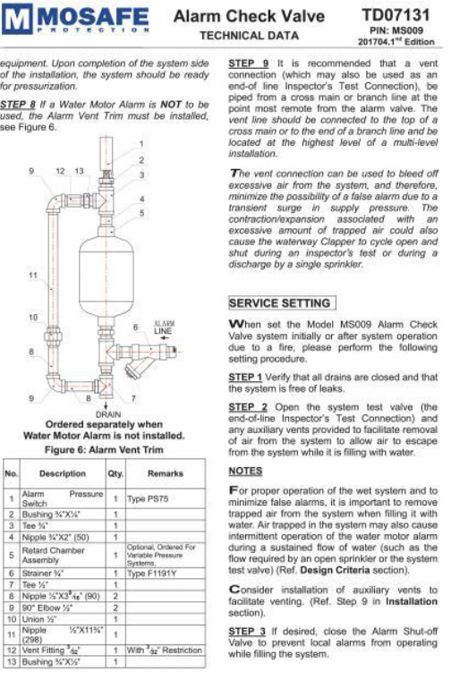

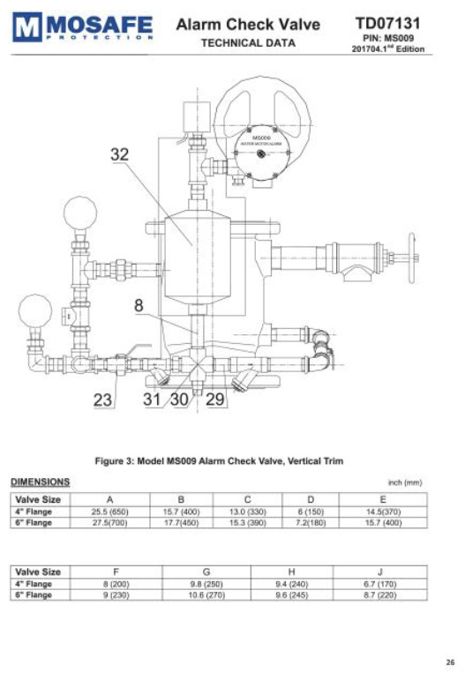

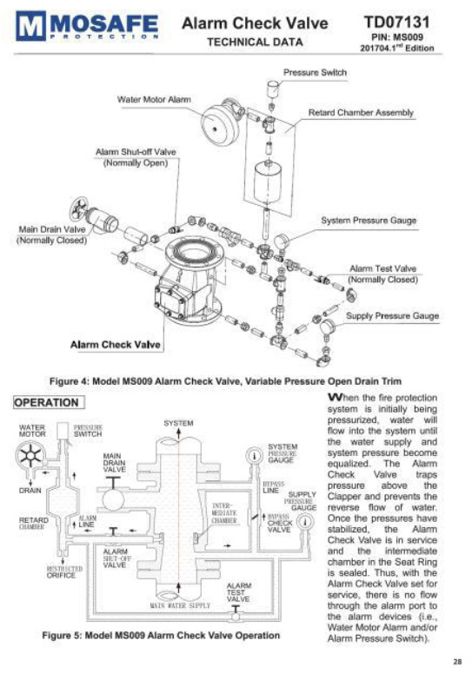

Trim-description sheet for the MOSAFE MS009 Alarm Check Valve showing the numbered trim assembly layout (gauges, valves and piping arrangement) used to identify and order trim components for the valve.
| Content | Trim description / numbered trim assembly drawing |
|---|---|
| Document / PIN | TD7131, PIN MS009, 2017/04 1st Edition |
| Brand | MOSAFE |
الطراز: TD07131 / MS009
Dimensioned vertical-trim assembly drawing (Figure 3) for the MOSAFE MS009 Alarm Check Valve, listing overall trim dimensions for both the 4" and 6" flanged valve sizes in inches and millimetres.
| Reference | Figure 3, MS009 Alarm Check Valve vertical trim |
|---|---|
| Valve sizes | 4" Flange and 6" Flange |
| 4" Flange dim A | 20.5 (650) |
| 6" Flange dim A | 27.6 (700) |
| 4" Flange dim F | 8 (200) |
| 6" Flange dim F | 9 (230) |
| Dimensions | Given in inch (mm) |
الطراز: TD07131 / MS009
Bill-of-materials sheet for the MOSAFE MS009 Alarm Check Valve listing each trim part with quantity and remarks, alongside operating notes for constant-pressure (closed) and variable-pressure (open retard chamber drain) wet-system configurations.
| Content | Bill of Materials (No., Description, Qty, Remarks) plus Introduction/Operation text |
|---|---|
| Operating modes covered | Constant Pressure Closed, Variable Pressure With Open Retard Chamber Drain |
| Key items listed | Nipple, Tee, Cross, Hexagon Nipple, Ball Valve, Strainer, Water Motor Alarm, Retard Chamber Assembly |
| Reference | Bill of Materials table for MS009 Alarm Check Valve trim |
الطراز: TD07131 / MS009
Operation sheet for the MOSAFE MS009 Alarm Check Valve showing the variable-pressure open drain trim arrangement (Figure 4) and a valve-operation schematic (Figure 5), illustrating how the clapper lifts on a pressure drop to admit water to the system and actuate the water motor alarm and pressure switch.
| Reference | Figure 4 (Variable Pressure Open Drain Trim) and Figure 5 (valve operation) |
|---|---|
| Trim components shown | Water Motor Alarm, Retard Chamber Assembly, Alarm Shut-off Valve (normally open), Main Drain Valve (normally closed), System Pressure Gauge, Alarm Test Valve, Supply Pressure Gauge, Pressure Switch |
| Operation | Clapper holds back pressurised system water; on sprinkler operation system pressure drops, clapper lifts and water flows to system and alarm devices |
الطراز: TD07131 / MS009
Operation and design-criteria sheet for the MOSAFE MS009 Alarm Check Valve, explaining how the retard chamber accommodates pressure surges to prevent false alarms while a sustained pressure drop from sprinkler operation trips the clapper to operate the water motor alarm and electric alarm devices.
| Content | Operation with installed retard chamber and Design Criteria text |
|---|---|
| Function | Retard chamber absorbs pressure surges/water column fluctuations to prevent false alarms |
| Design criteria | Restricted orifice / drain meters surge water out; clapper trips on sustained pressure drop to operate alarm |
| Document / PIN | TD07131, PIN MS009, 2017/04 1st Edition |
الطراز: TD07131
Page 1 of the MOSAFE Model M5009 Alarm Check Valve technical datasheet, covering installation warnings and the requirement to install the valve in the vertical position in compliance with NFPA and authority-having-jurisdiction standards.
| PIN | M5009 |
|---|---|
| Edition | 2017H4, 1st Edition |
| Technical Data Document | TD07131 |
| Installation | Model M5009 Alarm Check Valves described herein must be installed and maintained in compliance with this document, as well as with the applicable standards of the NFPA, in addition to the standards of any other authorities having jurisdiction. Failure to do so may impair the integrity of these devices. |
| Installation Orientation | Install in the appropriate trim chain in the vertical position. Take care that the appropriate gaskets, bolts and nuts are used for the application |
الطراز: TD07131
Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet detailing the wet connection / Inspector's Test Connection installation, service setting procedure, and the Figure 6 alarm vent trim component list (Water Motor Alarm ordered separately).
| PIN | M5009 |
|---|---|
| Installation | It is recommended that a wet connection (which may also be used as an end-of-line Inspector's Test Connection) be piped from a cross main or branch line at the point most remote from the alarm valve. The vent line should be connected to the top of a cross main or to the end of a branch line and be located at the highest level of a multi-level installation. |
| Vent Line | The vent connection should be installed in areas that are accessible and easily visible |
| Service Setting | When set the Model M5009 Alarm Check Valve system initially or after system operation due to a fire, please perform the following setting procedure |
| Water Motor Alarm | Water Motor Alarm is not installed; Figure 6 (Alarm Vent Trim) applies. Ordered separately when Water Motor Alarm is not installed. |
| Components (Figure 6 parts list) | Alarm Pressure Switch, Bushing 3/4 inch x 1/2 inch, Tee 1/2 inch, Nipple 1/2 inch (50), Retard Chamber Assembly, Tee 1/2 inch, Nipple 1/2 inch x 6 inch (60), 90 degree Elbow 1/2 inch, Union 1/2 inch, Bushing 1/2 inch x 1/4 inch, Vent Fitting 1/4 inch, Bushing 1/2 inch x 1/4 inch |
الطراز: TD07131

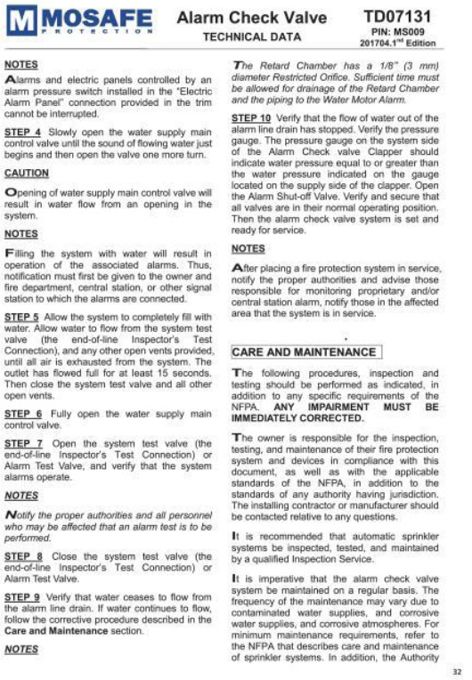

Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet covering the system setting procedure (control valve operation past the alarm port) and the general Care and Maintenance requirements per NFPA and the authority having jurisdiction.
| PIN | M5009 |
|---|---|
| Setting Step | Open the system main control valve only enough to maintain a flow that begins to flow water past the alarm port |
| Care and Maintenance | The following procedures, inspection and testing should be performed as indicated, in addition to any specific requirements of the NFPA. Any impairment must be immediately corrected. |
| Pressure Supply | Closing the main control valve will partially or completely drain the system |
| Authority Having Jurisdiction | The minimum maintenance requirements; the AHJ may require additional inspection, testing and maintenance |
الطراز: TD07131

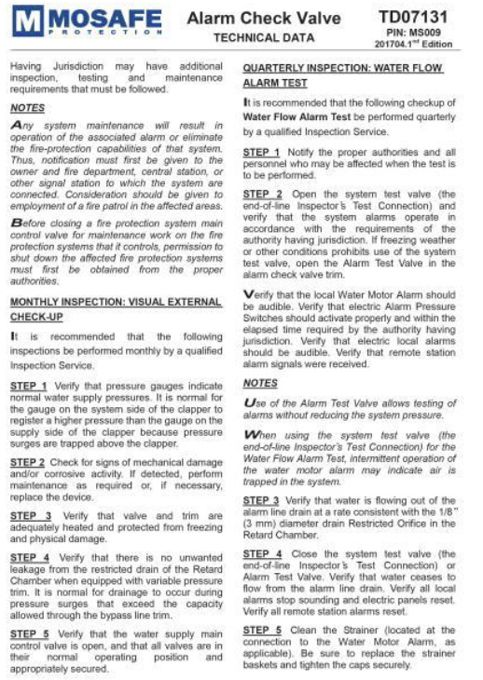

Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet detailing the monthly visual external check-up, the quarterly Water Flow Alarm Test procedure, and verification of the water motor alarm, electric pressure switches and retard chamber restricted orifice.
| PIN | M5009 |
|---|---|
| Quarterly Inspection | Water Flow Alarm Test should be performed quarterly by a qualified Inspection Service |
| Monthly Inspection | Visual external check-up of normal water supply pressures; verify that pressure gauges indicate normal water supply pressures |
| Test Step 2 | Check for signs of mechanical damage and/or corrosive activity; replace the device if defective |
| Retard Chamber | Verify that there is no unwanted leakage from the restricted drain of the Retard Chamber when equipped with variable pressure trim. It is normal for drainage to occur during pressure surges that exceed the capacity allowed through the bypass line trim. |
| Restricted Orifice | Verify that the local Water Motor Alarm should be audible. Verify that electric Alarm Pressure Switches actuate properly within the elapsed time required (1/8 inch / 3 mm) diameter drain Restricted Orifice in the Retard Chamber. |
الطراز: TD07131

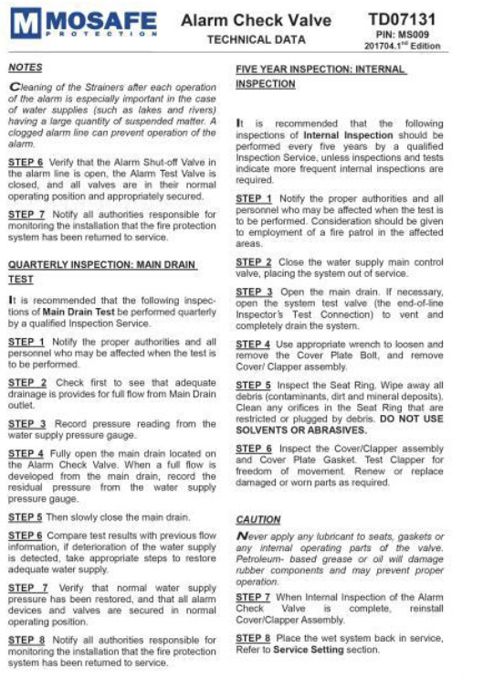

Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet covering the quarterly main drain test, the five-year internal inspection of system components, seal ring cleaning instructions, and the caution against using solvents, abrasives or lubricants on internal parts.
| PIN | M5009 |
|---|---|
| Quarterly Main Drain Test | Record pressure reading from the water supply pressure gauge; fully open the main drain valve until the water is discharging full flow, then record the residual water supply pressure gauge reading |
| Five-Year Inspection | Internal inspection of system internal components should be performed every 5 years |
| Seal Ring Inspection | Wipe away all debris (stains, contaminants, dirt and mineral deposits); clean any orifices in the Seal Ring; restricted or plugged by debris. DO NOT USE SOLVENTS OR ABRASIVES. |
| Caution | Never apply any lubricant to seals, gaskets or any internal operating parts of the valve |
الطراز: TD07131

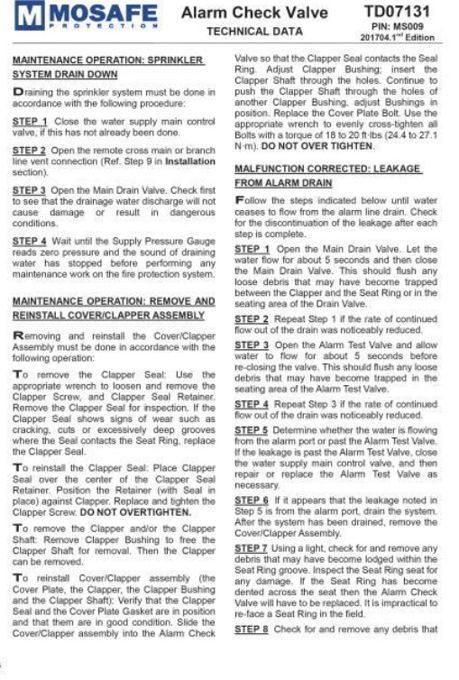

Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet covering the sprinkler system drain-down maintenance operation, copper seat/shaft removal and reinstallation using the Clapper Seat Removal Tool, and the malfunction remedy for leakage from the alarm drain (seal ring inspection/replacement).
| PIN | M5009 |
|---|---|
| Maintenance Operation | Sprinkler System Drain Down procedure in accordance with the following cleaning instructions |
| Copper Shaft / Seat Removal | Remove and reinstall the Copper Seat. Use the Copper Seat Place Copper Remover the Clapper Seat for removal; the Copper Shaft Remover and Clapper Seat Removal Tool are required for variable pressure trim |
| Malfunction - Leakage From Alarm Drain | Allow the system to drain completely; if there is flow of water out of the alarm port, the Seal Ring may need to be replaced. Open the Main Drain Valve. Check that the Seal Ring and seat are clean and free from foreign matter. |
| Seal Ring Wipe | Wipe away any debris located between the Clapper and the Seal Ring or in the seating area of the Drain Valve |
الطراز: TD07131

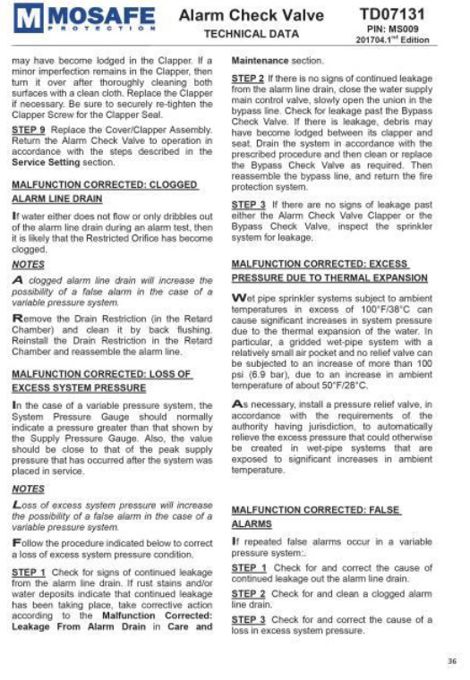

Continuation page of the MOSAFE M5009 Alarm Check Valve datasheet providing troubleshooting guidance for malfunctions such as a clogged alarm line drain, excessive or lost system pressure, leakage from the alarm drain, pressure increases from thermal expansion, and false alarms.
| PIN | M5009 |
|---|---|
| Malfunction - Clogged Alarm Line Drain | If water either does not flow or only dribbles out of the alarm line drain during an alarm test, it is likely that the Restricted Orifice has become clogged |
| Malfunction - Excessive System Pressure | A clogged alarm line drain will increase the possibility of a false alarm in the case of a variable pressure system |
| Malfunction - Loss of Excess System Pressure | Loss of excess system pressure will increase the possibility of a false alarm in the case of a variable pressure system; the malfunction must be placed in service |
| Malfunction Corrected - Leakage From Alarm Drain | Wipe and reinstall the seat after the indicated number of seconds; the seat may have to be replaced if the Seal Ring is damaged |
| Malfunction Corrected - Pressure/Thermal Expansion | Hot system water subject to solvent temperatures in excess of 100 degrees F can cause significant increases in system pressure due to the thermal expansion of the water |
| Malfunction Corrected - False Alarms | Verify and correct the cause of continued leakage out of the alarm line drain |
الطراز: TD07131; PSN 0713 1 1X(_) 1X(_)
Final page of the MOSAFE M5009 Alarm Check Valve datasheet giving the ordering procedure and Product Symbol Number (PSN) selection table for valve size (100 mm / 150 mm) and connection style (flange or groove), plus accessory options (Model M5009 Retard Chamber and Model M5010 Water Motor Alarm) and a metric conversion table.
| PIN | M5009 |
|---|---|
| Standard Order PIN | Standard M5009 Alarm Check Valve (vertically swing, opposite size; includes Model M5009 Alarm Check Valve specify only Model M5009 Valve) |
| Product Symbol Number (PSN) - Field 1 | 1: Alarm Check Valve Size |
| PSN Field 2 (Size code 4) | 100 |
| PSN Field 2 (Size code 5) | 150 |
| PSN Field 3 (Code 1) | Alarm Check Valve Connection Style |
| PSN Field 4 (Code 2) | Flange X Flange |
| PSN Field 4 (Code 3) | Groove X Groove |
| Accessories | Model M5009 Retard Chamber (required for variable pressure water supply conditions) with NPT connection style |
| Water Motor Alarm | Model M5010 Water Motor Alarm (required for a mechanical water flow alarm) with NPT3/4 Alarm Line Inlet and NPT1 Drain Outlet |
| Conversion Table | Millimetre (mm) 1 in = 25.4 mm; Square metre (m2) 1 ft2 = 0.0929 m2; Litre (L) 1 gal = 3.785 L; Litre/min 1 gpm = 3.785 L/min; Cubic metre (m3) 1 ft3 = 0.0283 m3; Kilogram (kg) 1 lb = 0.4536 kg; Pascal (Pa) 1 psi = 6895 Pa; Bar (bar) 1 bar = 100 kPa; Newton metre 1 ft-lb = 1.355 N-m |
| Approval / Standard | M5009 valves comply with applicable standards |
الطراز: MS010
MOSAFE Model MS010 hydraulically operated water motor alarm that produces an audible warning at the protected building when a waterflow detecting valve operates. Used in conjunction with waterflow/alarm check valves on wet-pipe, dry-pipe and deluge sprinkler systems.
| Model | MS010 |
|---|---|
| Working Water Pressure Range | 5 to 175 psig / 0.035 to 1.2 MPa (0.35 to 12 bar) |
| Shipping Weight | 11 lbs / 5 kg |
| Alarm Line Inlet | NPT3/4 or Rc3/4 |
| Drain Outlet | NPT1 or Rc1 |
| Required Accessories | Y-Strainer; 3/4" 20-mesh screen |
| Listings and Approvals | UL (United States) |
| Document | TD0401313, P/N MS010, 2017/04 1st Edition |
الطراز: MS010
Output section of the MOSAFE MS010 water motor alarm datasheet, presenting typical sound pressure levels (Figure 1) measured at various test pressures and distances, plus the Figure 2 water motor alarm assembly diagram. Sound output rises as water reaches the gong striker.
| Test Pressures (Figure 1 sound chart) | 5, 10, 15, 30, 50, 75, 100, 150 psig curves |
|---|---|
| Background Sound Pressure Reference | 55 dBA |
| Pipe Run Configurations Tested | 10 ft (3 m) above ground level on 8-inch (200 mm) thick concrete block |
| Microphone Position | located at distances of 4 ft (1.2 m), 30 ft (9 m) and 40 ft (12 m) from the gong |
| Document | TD0401313, P/N MS010 |
الطراز: MS010

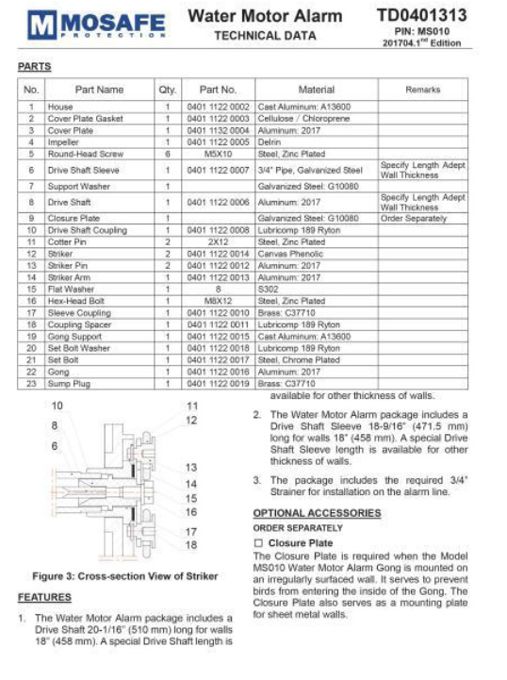

Parts list and cross-section product description (Figure 3) for the MOSAFE MS010 water motor alarm, identifying each component, quantity, material and ordering options including the standard drive-shaft package.
| Housing Material | Cast Aluminium A13600 |
|---|---|
| Cover Plate Gasket | Cellulose / Chloroprene |
| Cover Plate Material | Aluminium 2917 |
| Round Head Screw Material | M5X10, Steel, Zinc Plated |
| Drive Shaft / Sleeve / Coupling Sleeve / Gong Support | Galvanized Steel; G10260 / G12550 |
| Impeller / Pad Washer / Striker | Steel, Zinc Plated |
| Drive Shaft package | includes a 3/4" pipe, 18-9/16" (471.5 mm) long, for walls 14" (356 mm) thick or less |
| Drive Shaft Sleeve | Required 3/4" Sleeve for installation on the alarm side |
| Document | TD0401313, P/N MS010 |
الطراز: MS010

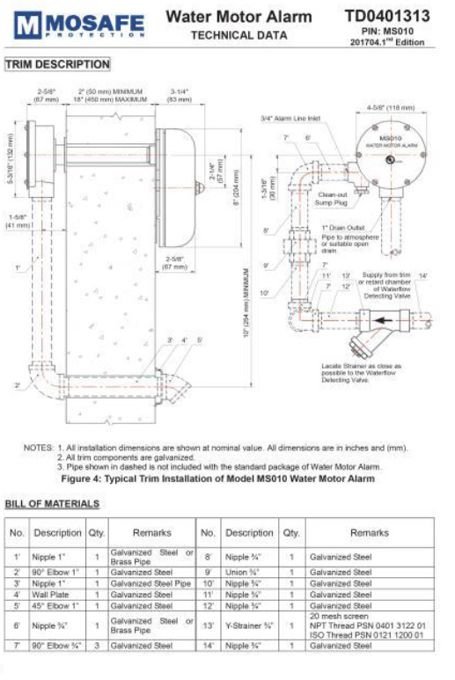

Trim description (Figure 4 typical trim installation) and bill of materials for the MOSAFE MS010 water motor alarm, listing the galvanized-steel nipples, elbows, plug, pad plate and Y-strainer required for installation.
| Nipple 1 | Galvanized Steel |
|---|---|
| 90° Elbow | Galvanized Steel |
| Plug 3/4" | Galvanized Steel |
| Pad Plate | Galvanized Steel |
| Y-Strainer | Galvanized Steel |
| Galvanized Steel Reed Pipe | Galvanized Steel |
| Dimensions Note | All installation dimensions shown at nominal value; all dimensions in inches and (mm) |
| Document | TD0401313, P/N MS010 |
الطراز: MS010
Design criteria and installation instructions for the MOSAFE MS010 water motor alarm, covering drive-pipe routing (75 ft max), drain piping, through-wall location and corrosion-resistant material requirements for reliable operation.
| Maximum Drive Pipe Run | 75 ft maximum, 3/4" Drain throughout |
|---|---|
| Drain Piping Size | 3/4" size throughout |
| Through-wall Location | 10" (254 mm) below the Drive Shaft Sleeve |
| Waterflow Detecting Valve Drain Pipe | horizontal type, non-spring loaded swing check valve |
| Drive Pipe Material | Galvanized steel, brass or other corrosion-resistant material |
| Drain Outlet | Drain located so water is directed away from the building (40°F / 4°C minimum temperature) |
| Document | TD0401313, P/N MS010 |
الطراز: MS010
Continuation of the MOSAFE MS010 water motor alarm installation procedure, detailing cutting and coupling of the drive shaft, sleeve engagement and striker positioning relative to the waterflow detecting valve.
| Cut Length | Cut 1-1/2" (38 mm) [1-7/16"/36.5 mm] minimum to 1-5/8"/41.3 mm maximum |
|---|---|
| Drive Shaft Sleeve Length | 3/4" or 1" sleeve |
| Coupling / Sleeve Engagement | Drive Shaft must be inserted 3/4" (19 mm) into the Waterflow Detecting Valve coupling |
| Striker Position | Striker should be positioned 1/4" (6 mm) from outer rim of Waterflow Detecting Valve |
| Document | TD0401313, P/N MS010 |
الطراز: MS010
Inspection, maintenance, water-motor disassembly and re-assembly procedures plus the ordering procedure for the MOSAFE MS010 water motor alarm, including quarterly testing recommendations and PSN ordering requirements.
| Inspection / Test Interval | Periodically operated; tested at regular intervals (quarterly recommended) |
|---|---|
| Cover Plate Screws | M5X10 Round-Head Screws |
| Impeller Cover Plate Gasket | M5X10 screws; cover plate and gasket re-assembly |
| Ordering Procedure | Product Symbol Number (PSN) shall be specified when ordering products |
| Standard Order Specification | Standard MS010 Water Motor Alarm; specify connection style, PSN |
| Document | TD0401313, P/N MS010 |
الطراز: MS010 / PSN 9401 313 X
Accessories, PSN (Product Symbol Number 9401 313 X) selection guidance and unit conversion table for the MOSAFE MS010 water motor alarm, listing Y-strainer connection styles and the closure plate option for irregular or sheet-metal walls.
| Connection Style 1 | Alarm Line Inlet NPT3/4, Drain Outlet NPT1 |
|---|---|
| Connection Style 2 | Alarm Line Inlet Rc3/4, Drain Outlet Rc1 |
| Y-Strainer with Rc3/4 connection | Standard package; requires 3/4" Y-strainer |
| Closure Plate | Required for the Alarm Gong mounted on irregularly surfaced wall or sheet-metal wall |
| Conversion - Length | 1 in = 25.4 mm; 1 ft = 0.3048 m |
| Conversion - Pressure | 1 psi = 6.895 kPa; 1 bar = 100 kPa; 1 MPa = 145 psi |
| Conversion - Weight | 1 lb = 0.4536 kg; 1 kg = 2.205 lb |
| Document | TD0401313, P/N MS010 |
معتمد من الدفاع المدني · ISO 9001:2015 · نخدم الإمارات السبع.
